Scan 66 Spare Parts


Help picking your parts

  1. Exploded Diagram [Open PDF]

    Open the exploded diagram and visually identify the part you need. Make a note of the position number and quantity needed.

  2. Translate old part numbers.

    The exploded diagrams and spare parts list often have old part numbers, or you might have a cast number on the part in your stove.

Spare Parts

Name Part No Price Details
Accessory
Top cover for rear outlet. Black up to 02/2017 51048401 N/A View *
Conn. Piece Ø 125 mm int. 51049193 £ POA View *
Plinth base for Scan 66-4 GWH 51049219 £525.00 View
Top cover for rear outlet. Glossy GWH 51049260 £85.00 View
Wood holder stainless steel Scan 66-5 51051294 £154.80 View
S-shaped front for Scan 66-5 Incl. magnets. Black from 03/2017 51051442 £115.00 View
S-shaped front for Scan 66-5. Incl. magnets. Glossy GWH 51051885 £115.00 View
Top cover for rear outlet. Black from 03/2017 51051957 £55.00 View
S-shaped front for Scan 66-5. Incl. magnets. Dusky Green DGR 51052324 N/A View *
Top cover for rear outlet. Dusky Green DGR 51052325 N/A View *
S-shaped front for Scan 66-5 GREY. Incl. magnets T10005 £ POA View *
Burn Chamber
Scan 66 Kit with burn chamber plates and baffles complete 51048621 £112.20 Scan 66 Kit with burn chamber plates and baffles completezoom
Floor Plate
Glass small/Scan 66-2 50048218 £174.00 View
Glass large /Scan 66-2 50048220 £274.50 View
Glass small/Scan 66-3 50049090 £105.47 View
Glass large /Scan 66-3 50049091 £179.52 View
Glass small/Scan 66-4 50049092 £93.49 View
Glass large /Scan 66-4 50049093 £125.00 View
Glass small/Scan 66-5 50051376 £147.40 View
Glass large /Scan 66-5 50051377 £162.70 View
Steel, small, black Scan 66-2 51048055 £104.51 View
Steel, large, black Scan 66-2 51048056 £175.00 View
Steel, small, black Scan 66-5 51051374 £128.47 View
Steel, large, black Scan 66-5 51051375 £ POA View *
Gasket Rope
Gasket. Type AH x 3m
Used for: Glass, type AH (3 m) 		51048614 £33.55 View
Gasket. Type AI x 3m
Used for: Door, type AI (3 m) 		51048615 £67.25 View
Gasket ring for cast iron bottom 51050570 £9.56 Gasket ring for cast iron bottomzoom
Glass
Glass for door Scan 66 (always order glass gasket) 51048611 £95.04 View
Log retainer glass 51048624 £129.60 View
Miscellaneous
Conn. Piece top outlet/tube inside 51048609 £42.00 View
Door complete. Black up to 02/2017 51048610 N/A View *
Top cover for top outlet. Black up to 02/2017 51048616 N/A View *
Side mantle (1 pcs.). Black up to 02/2017 51048618 £294.84 View
Connecting piece, tube outside (standard) 51048620 £67.32 Connecting piece, tube outside (standard)zoom
Glass handle door, complete incl. holder. 51048622 £77.88 View
Pcs. air control/glass 51048623 £49.25 Pcs. air control/glasszoom
Cast iron grate/bottom 51048625 £117.48 View
Ash drawer 51048626 £67.10 Ash drawerzoom
Silicon inlay black Scan 66-3 51048627 £48.04 View
Silicon inlay white Scan 66-3 51048628 £48.04 View
Kit Bauart 1 complete 51048639 £25.20 View
Spring for Bauart 1 51048646 £7.04 View
Front for door (is easier to replace than the door complete). Black from 03/2017 51049049 £213.18 View
Rear mantle. Black from 03/2017 51049057 N/A View *
Pin for baffle Ø 8 x 40 mm (2 per stove) 51049192 £2.42 Pin for baffle Ø 8 x 40 mm (2 per stove)zoom
Top cover for top outlet. Glossy GWH 51049764 £79.20 View
Side mantle (1 pcs.). Glossy GWH 51049765 £66.38 View
Front for door (is easier to replace than the door complete). Glossy GWH 51049766 £271.20 View
Rear mantle. Glossy GWH 51049767 £289.20 View
Door complete. Glossy GWH 51049773 £921.60 View
Top cover for top outlet. Dusky Green DGR 51049774 N/A View *
Side mantle (1 pcs.). Dusky Green DGR 51049775 N/A View *
Door complete. Dusky Green DGR 51049776 N/A View *
Front for door (is easier to replace than the door complete). Dusky Green DGR 51049777 N/A View *
Rear mantle. Dusky Green DGR 51049778 N/A View *
Kit wood holders Scan 66-5. Dusky Green DGR 51049779 N/A View *
Cover plate base Scan 66-4. Black up to 02/2017 51050163 N/A View *
Cover plate base Scan 66-3 51050164 N/A View *
Cover plate base Scan 66-3 51050200 N/A View *
Cover plate base Scan 66-4. Glossy GWH 51050201 £75.24 View

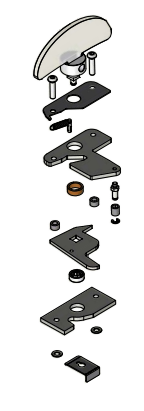

Glass handle door, complete incl. all parts. 51050846 £129.60 View
Kit wood holders Scan 66-5. Black from 03/2017 51051517 £33.26 View
Kit wood holders Scan 66-5. Glossy GWH 51051518 £46.08 View
Top cover for top outlet. Black from 03/2017 51051958 £62.93 View
Side mantle (1 pcs.). Black from 03/2017 51051961 £68.64 View
Door complete. Black from 03/2017 51051962 £874.80 View
Cover plate base Scan 66-4. Black from 03/2017 51052035 £57.17 View
Cover plate base Scan 66-4. Dusky Green DGR 51052326 N/A View *
Return spring for handle 51053636 £10.09 Return spring for handlezoom
Paint
Scan Single Can Black Paint 200ml 50006003 £16.99 Scan Single Can Black Paint 200mlzoom
SCAN Grey Spray Paint 200ml 50006004 £16.99 SCAN Grey Spray Paint 200mlzoom
Scan Single Can Black Paint 400ml - Water Based 50051967 £24.62 Scan Single Can Black Paint 400ml - Water Basedzoom
Scan Single Can Grey Paint 400ml - Water Based 50051968 £24.62 Scan Single Can Grey Paint 400ml - Water Basedzoom
